Description

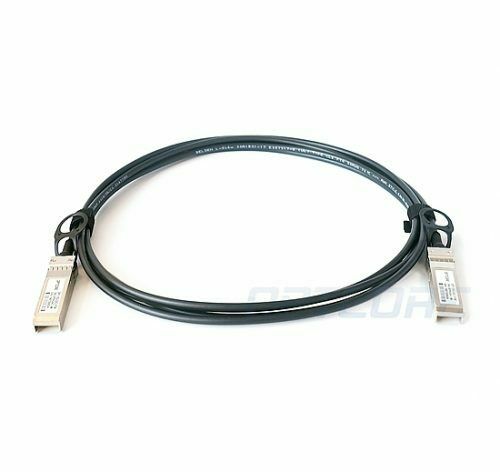

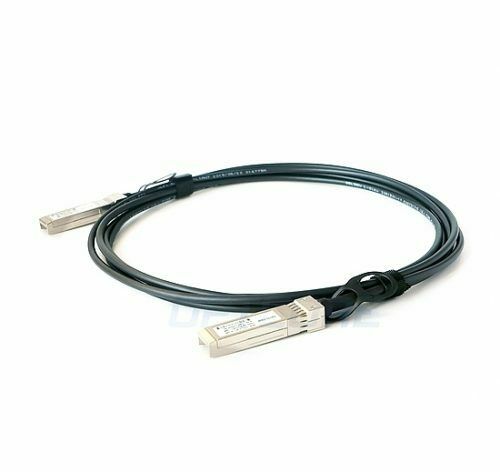

This OPTCORE HPE Aruba J9281D compatible DAC provides a high performance and cost-effective SFP+ direct attach copper cable with a length of 1 meters (3.3ft). It supports the bandwidth transmission requirements as defined by 10 Gigabit-Ethernet (10GBase-CU), 8G Fiber Channel (FC) and 10G Fiber Channel over Ethernet (FCoE). Every cable is individually programmed and tested to work with HPE Aruba 10G switches, routers, network adapters, and network storage systems. It offers a low-cost alternative to genuine Aruba J9281D high-speed cable assemblies.
Features
• Functionally identical to HPE Aruba J9281D
• Support for multi-gigabit data rates up to 10.5Gbps
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant with enhanced EMI/EMC performance
• Single 3.3V power supply
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
| OEM Part Number | J9281D | Optcore Part Number | SFP-10G-DAC-P1M-HP |
|
Form Factor |
SFP+ DAC Cable | Data Rate | 10.5Gb/s |
| Passive or actively equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 1 m | Cable impedance | 100 Ω |
| Cable Type | Twinax | Wire Gauge | 30AWG |
| Minimum cable bend radius | 25 mm | Cable Jacket Type | PVC |
| Connector | SFP+ | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.1 kg |
| Application | Storage Area Networks( SAN)Network Attached Storage
Switched fabric I/O High density connections between networking equipment Data center cabling infrastructure |
Compliance | SFF-8472,SFF-8431IEC/EN 61000-4-2
MIL-STD-883E, RoHS |
